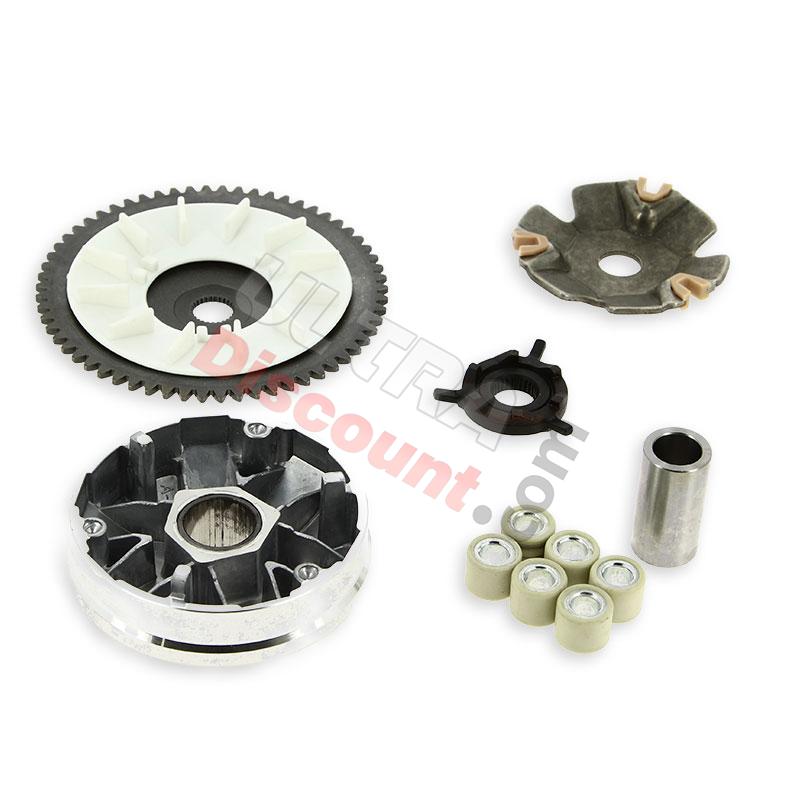

Variator (CVT) for 50cc Baotian Scooter BT49QT-9 Description

This is a stock variator for Baotian scooters BT49QT-9.

Mounting it requires about 15 minutes.

This variator is suitable for scooters 50cc with an engine of type GY6.

Dimensions:
- Bush length: 38mm,
- Bush inner diameter: 14mm,
- Bush outer diameter: 20mm,
- Ramp plate center hole diameter: 14.4mm (measured at the bottom of the grooves),
- Driving pulley assy diameter: 87mm
