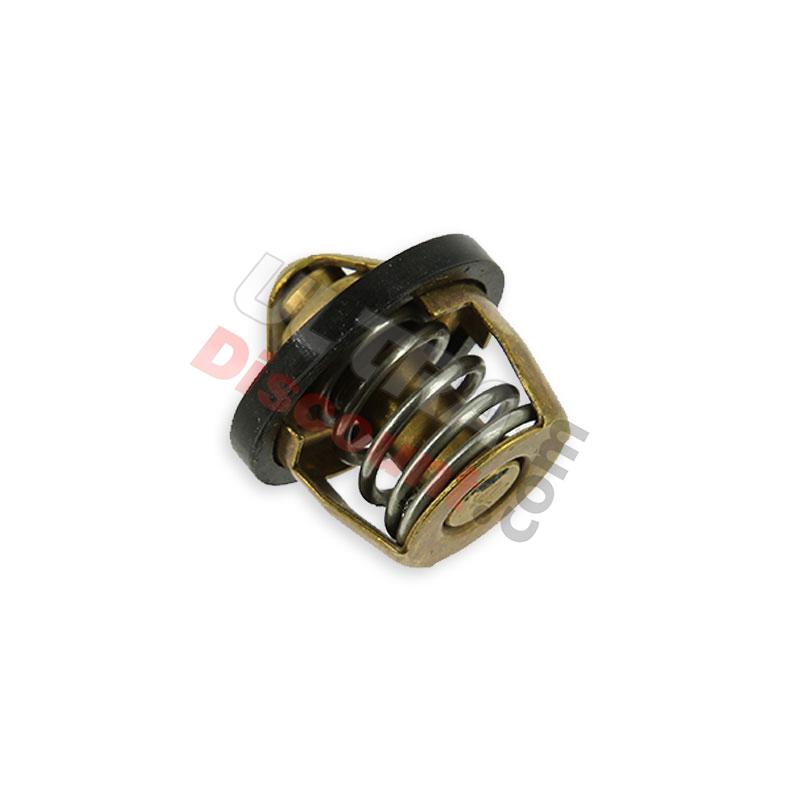

Thermostat for ATV Shineray Quad 250cc STIXE ST9E 60 c
-
This thermostat is suitable for ATV Shineray Racing Quads 250cc (liquid cooled).
It can be mounted on the following ATV Shineray Quads:
- XY250STIXE
Thanks to this thermostat, the minimum engine's working temperature is 60°C.
Operating principle:
When the temperature of the coolant liquid is below 60°C, the thermostat is in a closed state. The coolant liquid flows in a closed loop and never flows through the radiator.
Once the temperature raise above 60°C, the thermostat opens and the coolant liquid can flow through the radiator.
To check the thermostat you will need a cooking pot, some water, a thermometer that can measure up to 100°C, the thermostat to test:
- Put the thermostat and the thermometer in the water filled cooking pot.
- Heat the water.
- The thermostat should open when the water temperature is about 50°C.
Where is the thermostat located?
It's located in the housing found on the left hand-side of the quad.
Additional information (eg quotations) are available in the "Technical Description" : Click herePhotos :
